Parapet Flashing Design
in progress
M
Michael Pelda

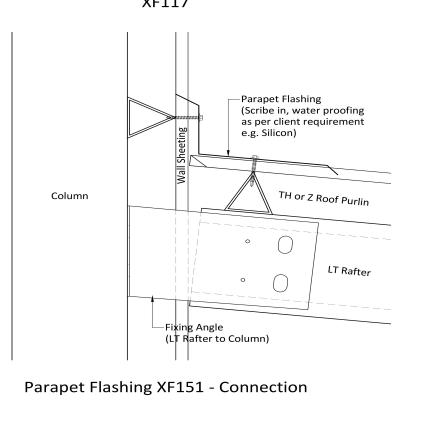

"Scribe in, water proofing as per client requirement".
The client & Builder do not want this design at all, causes nothing but trouble and truly looks horrible.

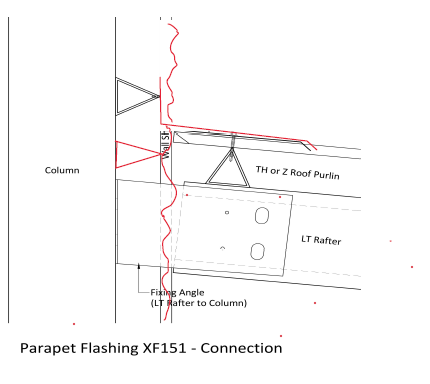

If you push the parapet flashing up against the top wall girt, cut the internal wall sheet and push up to the bottom of the parapet flashing and then add another wall girt to fix the bottom cladding to, this will fix any water proofing issues and we wont need to try justify the design to our customers after its constructed.
Ashley Gale
marked this post as
in progress
Ashley Gale
marked this post as
complete
you can set this as a custom flashing.
M
Michael Pelda
Ashley Gale Good morning Ashley, I can see you have marked this as completed. Its not the flashing itself thats the issue. We need to add additional wall girts, preferably two rows one for above the leanto to attach the flashing, and one below where we have to cut the sheets. Our builders and customers are always unhappy with the finished product as the design is open for leaks and looks terrible. We have added extra girts where there are windows, lets make this happen. Very frustrating process.
S
Sam Didio
This was discussed on the virtual conference L/Y - still waiting for it. The current setup is woeful.
J
Jeff Robinson
Agree.This is ugly
Ashley Gale
marked this post as
in progress
this is part of the Q2 roadmap
